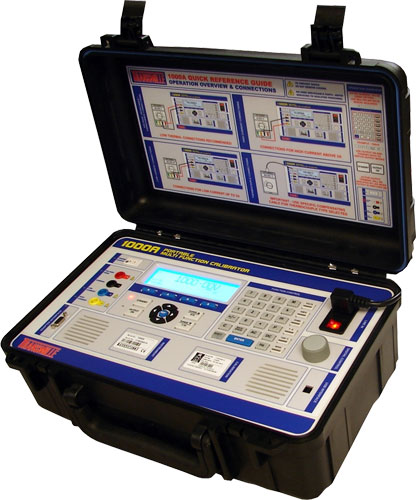

Transmille 1000 Series Multifunction Calibrator

Features

• DC Voltage Range: 0 to 1020V; Accuracy: 80ppm
• DC Current Range: 0 to 10A; Accuracy: 0.03%
• AC Voltage Range: 0 to 1020V (10Hz to 2kHz); Accuracy: 0.08%
• AC Current Range: 0 to 10A (10Hz to 2kHz); Accuracy: 0.1%
• Resistance (simulated) Range: 0 to 10MΩ; Accuracy: 0.02%
• Resistance (passive)
  Range: 10Ω to 100MΩ (decades); Accuracy: 0.02%
• Capacitance (passive) Range: 10nF to 1µF; Accuracy: 0.8%
• Insulation Resistance Range: 1MΩ to 1GΩ; Accuracy: 0.8%
• PRT Resistance Range: -200 to 800°C; Accuracy: 20ppm
• Thermocouple Simulation Range: J,K,T,R,S,B,N,E,L,U,C; Accuracy: 0.22°C
• Rugged, ultra-portable design
• Fast warm up time
• Full output protection using built-in I-GUARD system
• Transit case, benchtop versions available
  • Benchtop can be rack mounted with accessory
• USB interface
• Dedicated thermocouple output socket
• Graphic LCD display with backlight for clear, bright presentation of functions & settings
• Numeric keypad for easy entering of test values
• Includes ISO17025 factory certificate
