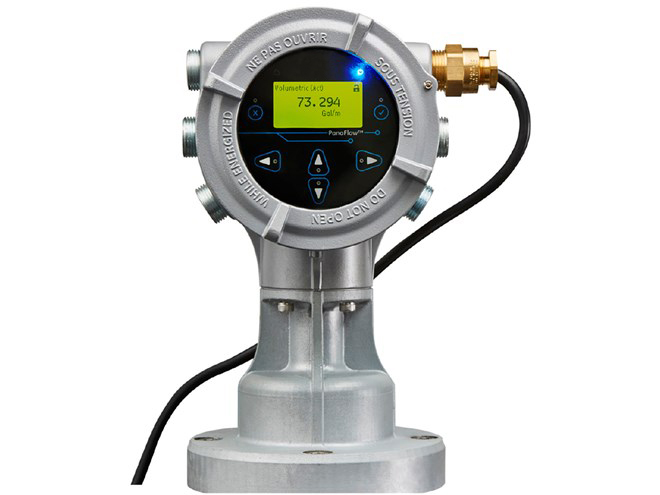

Panametrics PanaFlow XMT1000 Ultrasonic Flow Transmitter

The Panametrics PanaFlow XMT1000 Ultrasonic Flow Transmitter is a cost-effective ultrasonic flow transmitter that builds on Panametrics flow expertise and on years of reliable performance from its XMT868i predecessor. It offers state-of-the-art flow measurement capability in a rugged, locally-mounted or remote-mounted transmitter certified for use in hazardous areas. It brings a new level of performance with improved accuracy, configurable inputs and outputs, and multiple ultrasonic transducer path options.

The XMT1000 shares all the advantages of ultrasonic flow measurement: no moving parts to wear, no filters or strainers, no maintenance requirement, no pressure drop, and no drifting or required periodic calibration. Its on-board digital signal processor (DSP) provides proprietary digital signal coding and correlation detection routines, automatic adjustment to changing fluid properties, and dynamically-configured operating software to simplify programming.

Features

• 1 to 76in (25 to 1930mm) and larger pipe sizes
• –40 to 40 ft/s (–12.2 to 12.2 m/s) bidirectional range
• ±0.1% to 0.3% of reading repeatability
• Standard Inputs/Outputs
  • One 4 to 20 mA isolated output, 600 Ω maximum load
  • One additional output, may be configured as either a pulse or frequency output
• US/CAN: Class I, Division 1, Groups B, C, D; Class I, Zone 1, Ex d IIC T6; Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, Ex nA IIC
• ATEX/IECEx: Ex d IIC T6 FISCO outputs; Ta = -40°C to +60°C, Type 4X
