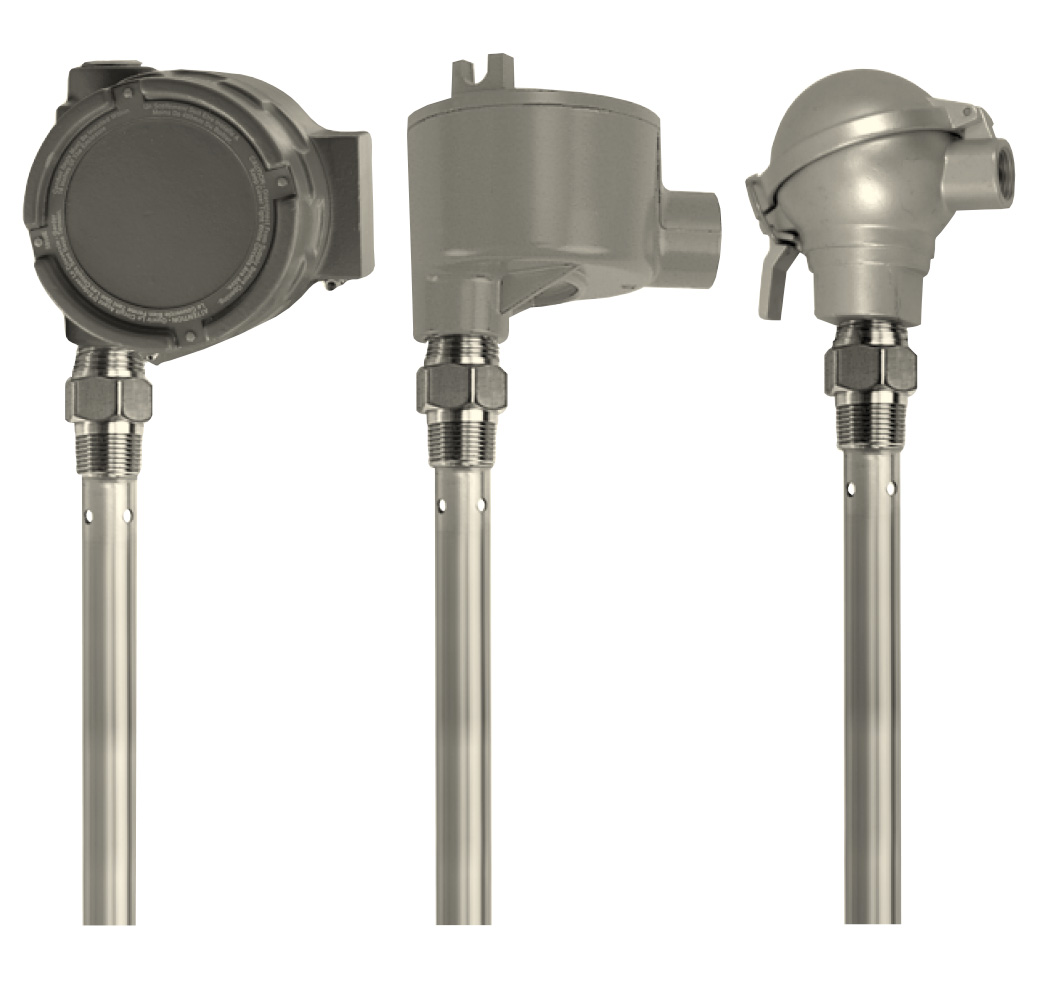

The Intempco LTX20 series fuel capacitance level transmitter is designed to measure level of fuels and oils in metalic and non-metalic tanks. The probe measures level by measuring the change in capacitance as level changes in the tank. The micro- processor based electronics converts this capacitance change into a linear, highly accurate 4-20 mA signal.
The LTX20 includes a standard 4 – 20mA loop powered LTX transmitter, a concentric 0.75 -inch diameter concentric shield with 0.188 – rigid sensor for ranges up to 10 feet. Probe material is SS316. The LTX20 is designed for tanks which have fitting connections of 3/ 4 ” NPT or larger and in applications where the liquid is relatively clean or non-clogging.
An excellent application for the LTX20 are stationary or mobile generators. This level sensor is shock resistant and very rugged. There are no moving parts. To isolate for ground loops, a non-conductive reducer ( such as PVC ) can be used between the tank and the 3/4″ NPT fitting of the LTX20.
Applications/Process Notes
Diesel fuels
Hydraulic oils
Vegetable oils
Chemical holding tanks
MEK and other solvants
Many other, non-conductive liquids
Do not use with:
Water and other conductive liquids
Conductive acids
Materials corrosive to SS316
