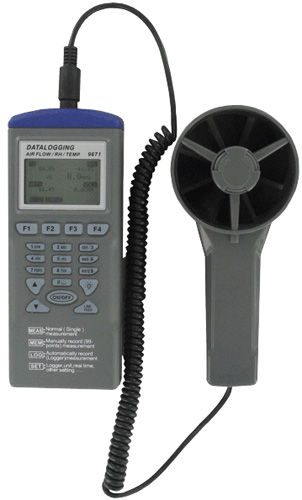

Dwyer 9671 Thermo-Anemometer

The Dwyer 9671 thermo-anemometer is a multifunction instrument that measures air velocity, air volume, temperature, humidity, and BTU. The unit includes a large 1.8″ (45 mm) display which allows users to easily view readings. The vane style anemometer can measure in user-selectable wind speed units including ft/min, m/s, knots, mph and km/hr. In addition to these functions, the 9671 is capable of measuring relative humidity, wet bulb temperature, dew point and BTU capacity. A built-in sensor records ambient temperature in °F or °C. Features of the 9671 include data hold, along with the ability to record minimum, maximum and average readings on a single point. Additional features include an RS-232 interface setting that allows the unit to download data, as well as upload up to 99 measurements through pre-edited PC files. The 9671 also has a detachable probe for easy replacement, if necessary, or to attach a miniature vane probe.

Features

• Air Velocity
  • Range: 118 to 6299 ft/min (0.6 to 32 m/s)
  • Accuracy: ±5% of reading or last significant digit (whichever is greater)
  • Resolution: 0.1 ft/min (0.1 m/s)
  • Response Time: 1 second
• Air Volume
  • Range: 99,999 (CFM, m³/s)
  • Accuracy: ±5% of reading or last significant digit (whichever is greater)
  • Resolution: 0.1 (0 to 9999.9) or 1 (1000 to 99,999)
  • Response Time: 1 second
• Temperature
  • Range: -4 to 140°F (-20 to 60°C)
  • Accuracy: ±1°F (±0.6°C)
  • Resolution: 0.1°F/°C
  • Response Time: 60 seconds
• Relative Humidity
  • Range: 0 to 100%
  • Accuracy: ±3% @ 25°C from 10 to 90% RH. Outside this range: ±5%
  • Resolution: 0.10%
  • Response Time: 60 seconds
• Wet Bulb
  • Range: -7.6 to 158°F (-22 to 70°C)
  • Resolution: 0.1°F/°C
• LCD Size: 1 x 1.8″
• Serial Communications: 9600 bps, 8 data bits, no parity
• Power Requirements: (4) AAA alkaline batteries, included, user replaceable
• Battery Life: 100 hours (approx.)
• Vane Diameter: 3″ (77 mm)
• CE approved
