Druck DPI 104 Calibration Kit

The Druck DPI-104 calibration kit combines the precision DPI 104 digital gauge with one of three hand pumps to provide a complete solution to your pressure calibration needs. Each kit includes all the parts you’ll need – including adaptors, hose, and seals – in a convenient carrying case.

There are four Druck DPI 104 calibration kits available:

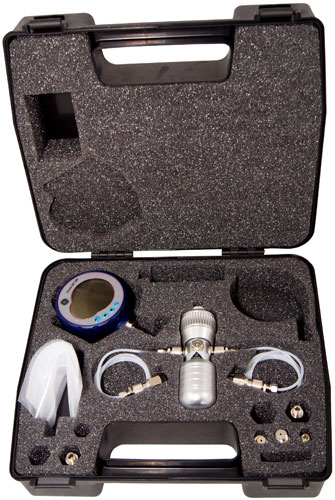

Low Pressure Pneumatic Test Kit:

DPI 104; PV210 low pressure pneumatic test pump, ranges to 30 psi (2 bar), hose, adaptors, seal kit and case

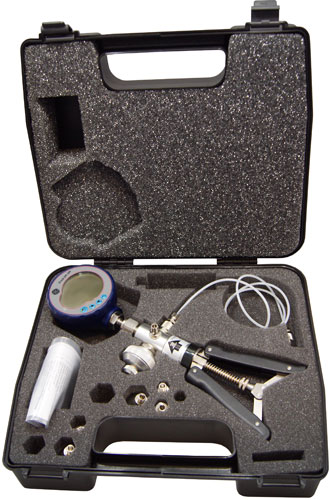

Pneumatic Test Kit:

DPI 104; PV211 pneumatic test pump, ranges to 300 psi (20 bar), hose, adaptors, seal kit and case

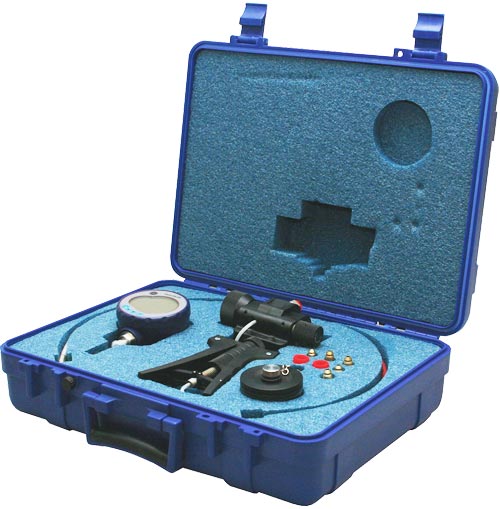

Pneumatic and Hydraulic Test Kit:

DPI 104; PV411A pneumatic and hydraulic test pump , ranges to 10,000 psi (700 bar), hydraulic reservoir, hose, adaptors, seal kit and case

Features

• DPI 104 digital gauge with one of three test pumps
• Pneumatic and/or hydraulic test pumps
• Pressure ranges to 10,000 psi (700 bar)
• Includes gauge, pump, hose, seal kit adaptors and case
• 0.05% full scale (FS) accuracy
• Eleven selectable pressure units
• Temperature compensated accuracy from 14 to 122°F
• 0 to 5V analog output
• Pressure switch test
