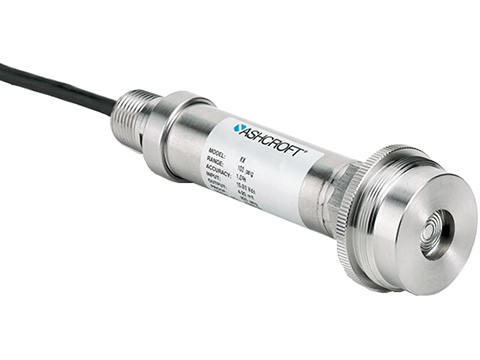

The Ashcroft KX flush mount pressure transducer features a poly-silicon thin film sensor and flush-mounted integral 316 stainless steel diaphragm. This creates a small sensing area and low internal volume which make the KX an ideal fit for applications with process media that can clog a standard sensor.
Measuring pressure from 0 up to between 100 and 5,000 psi, the Ashcroft KX flush mount pressure transducer offers ±1.0% of span accuracy. Both current and voltage outputs are available and the KX features all-welded stainless steel wetted materials and a NEMA 4X (IP65) enclosure.
