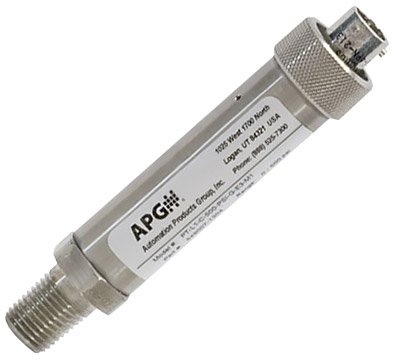

APG PT-L1/L3/L10 Pressure Transducers

The APG PT-L1/L3/L10 pressure transducers are simple and compact amplified output pressure transducers for OEM and general applications. They are the economical answer for all applications requiring high accuracy and reliability over a wide range of pressures.

The PT-L1/L3/L10 pressure transmitters offer ranges from vacuum to 10,000 psi with a basic accuracy of ±0.25% or an enhanced ±0.1% accuracy. All models feature a high burst pressure. With your choice of 316L, 15-5, or 17-4 stainless steel, these pressure sensors are built for endurance with high chemical compatibility and a solid construction.

The PT-L1/L3/L10 are available with a range of amplified outputs including 4-20 mA, 0-5 VDC, 0-10 VDC, 1-5 VDC, 1-6 VDC, or 1-10 VDC

Features

• Pressure range: Up to 10,000 psi
• Accuracy: B.F.S.L. ≤ 0.25% of full scale, NIST up to ±0.1% available in select ranges
• Output: 4-20 mA, 0-5 VDC, 0-10 VDC, 1-5 VDC, 1-6 VDC, 1-10 VDC
• Temperature compensated from -40 to 180° F (-40 to 82° C)
• Zero and span adjust
• High overpressure capability
• Single piece stainless steel process fitting and sensor
• Supply Voltage
• 4-20mA Output: 10-36 VDC
• 0-5 VDC Output: 9-33 VDC
• 0-10 VDC Output: 14-33 VDC
• Reverse polarity
• Internet connectivity via RST-5003 (4-20mA version only)
